MustangPanda New Backdoor LotusLite

LotusLite in nutshell

Chinese state-sponsored APT Mustang Panda has added a new undocumented C++ backdoor LotusLite to its arsenal targets the financial sectors in India , South Korea and U.S . The analyzed sample is a fully-featured Windows backdoor DLL disguised as a WPS Office component. Upon execution it silently installs itself under C:\ProgramData\WKwpsOffice2\, establishes registry-based persistence, and enters a perpetual C2 beacon loop. The operator gains an interactive reverse shell, full filesystem access, and file staging capabilities. The malware employs multiple anti-analysis techniques including dynamic API resolution, runtime string decryption, sandbox evasion via command-line inspection, and masquerading as a legitimate Microsoft runtime library.

---

Sample Information

Field	Value
MD5	ef5b753e5a2118d18c5e809c3d159a35
SHA-1	eb352c7f82a6987aaa5f3cad51e4c458970f5600
SHA-256	8dd7d6472771db5b82cfc87adcb03b303fcd8f16462700ce6ff63f3d935348d9
File Type	Win32 DLL
File Size	343.00 KB (351,232 bytes)
Creation Time (UTC)	2026-04-27 06:34:37
First Seen In The Wild (UTC)	2026-04-28 12:45:18

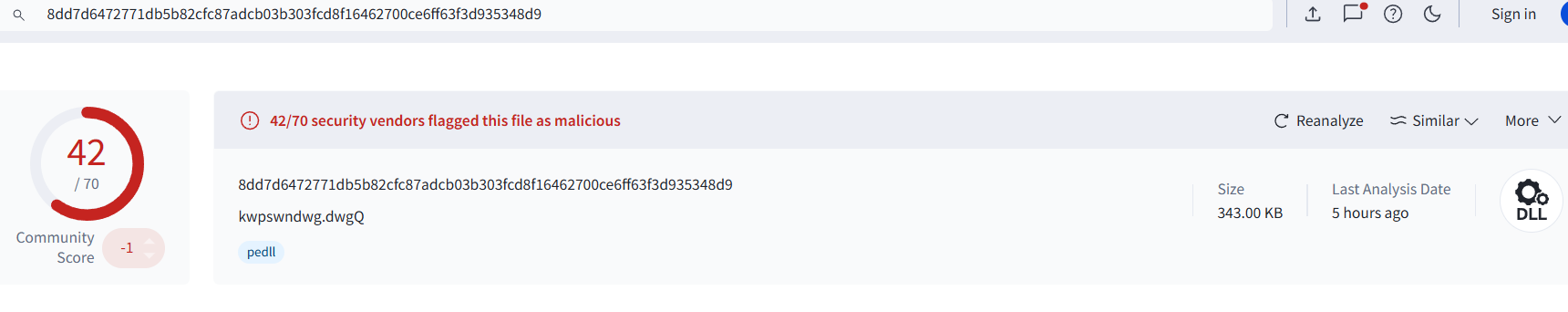

Figure(1) Sample Triage on VT

---

API resolving

The malware resolves all imports in runtime by decrypting the function and DLL names with using a two-phase algorithm:

1. XOR decryption with a rotating 5-byte key Credt

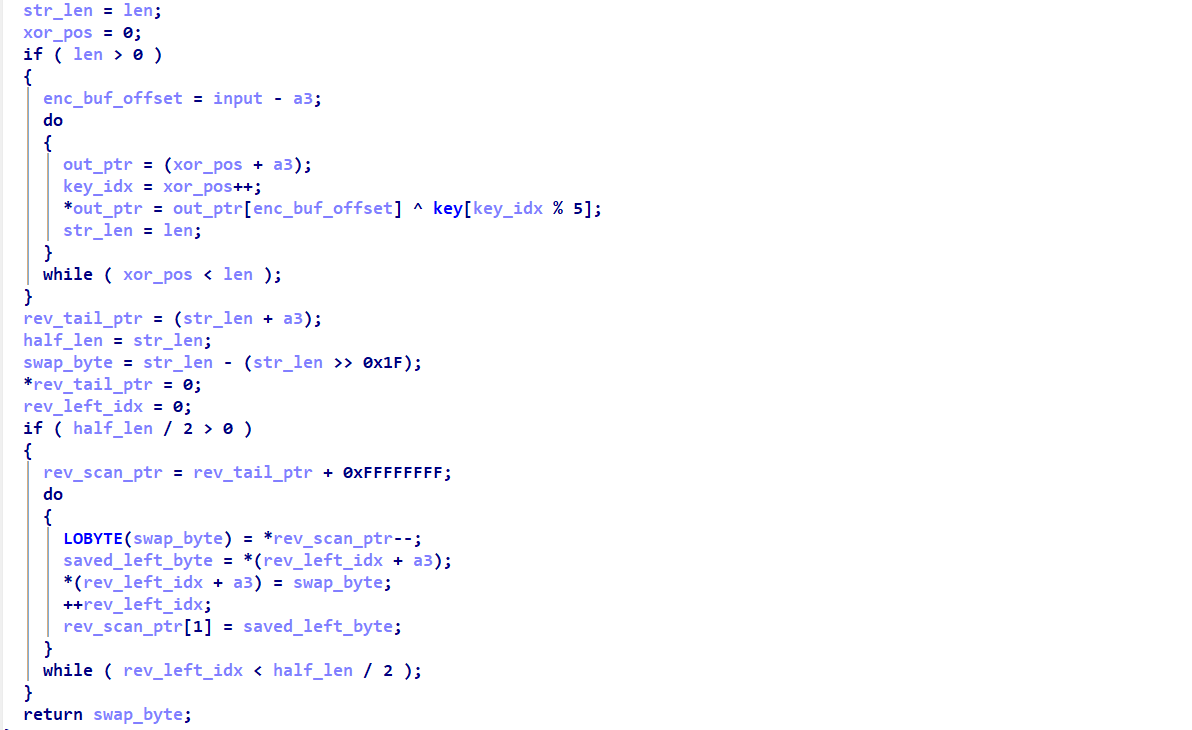

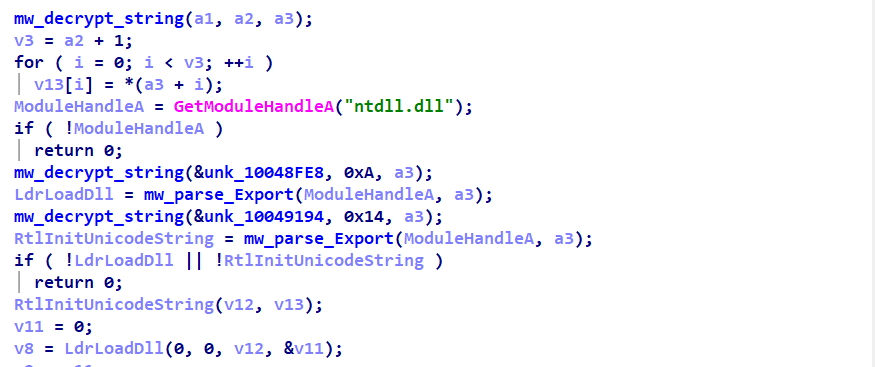

2. In-place reversal of the decrypted result Figure(1) String Decryption then loading the DLL through LdrLoadDll function then import the desired function. Figure(2) DLL loader function

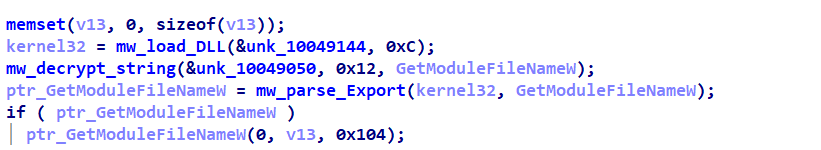

Figure(3) API resolving scheme

---

Evasion

On startup, the malware inspects its own command-line arguments using a dynamically resolved CommandLineToArgvW. It compares each argument against a known allowlist stored as a wide-string buffer. If unexpected arguments are present or if the process was launched without the expected --DMLA flag it alters its execution path to ExitProcess. Figure(4) Sandbox Evasion

---

Command and control

LOTUSLITE communicates exclusively over HTTPS on port 443, using WinINet APIs resolved dynamically at runtime. All traffic is POST-based, with the beacon hitting a hardcoded path /info/faq/v5 on the C2 host. To blend in with legitimate traffic, every request carries three spoofed headers:

Request: /info/faq/v5 HTTPS
Connection: Keep-Alive
Host: learn.microsoft.com
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/147.0.7727.102 Safari/537.36
Referer: https://www.google.com/
Cookie: JSESSIONID=x-ms-cpim-geo, mimicking a Microsoft Azure AD session token
Connection timeouts set to 2 minutes via InternetSetOptionW

The C2 certificate CN mismatch is silently suppressed via SECURITY_FLAG_IGNORE_CERT_CN_INVALID, meaning the C2 infrastructure runs self-signed or mismatched certificates without triggering any WinINet errors.

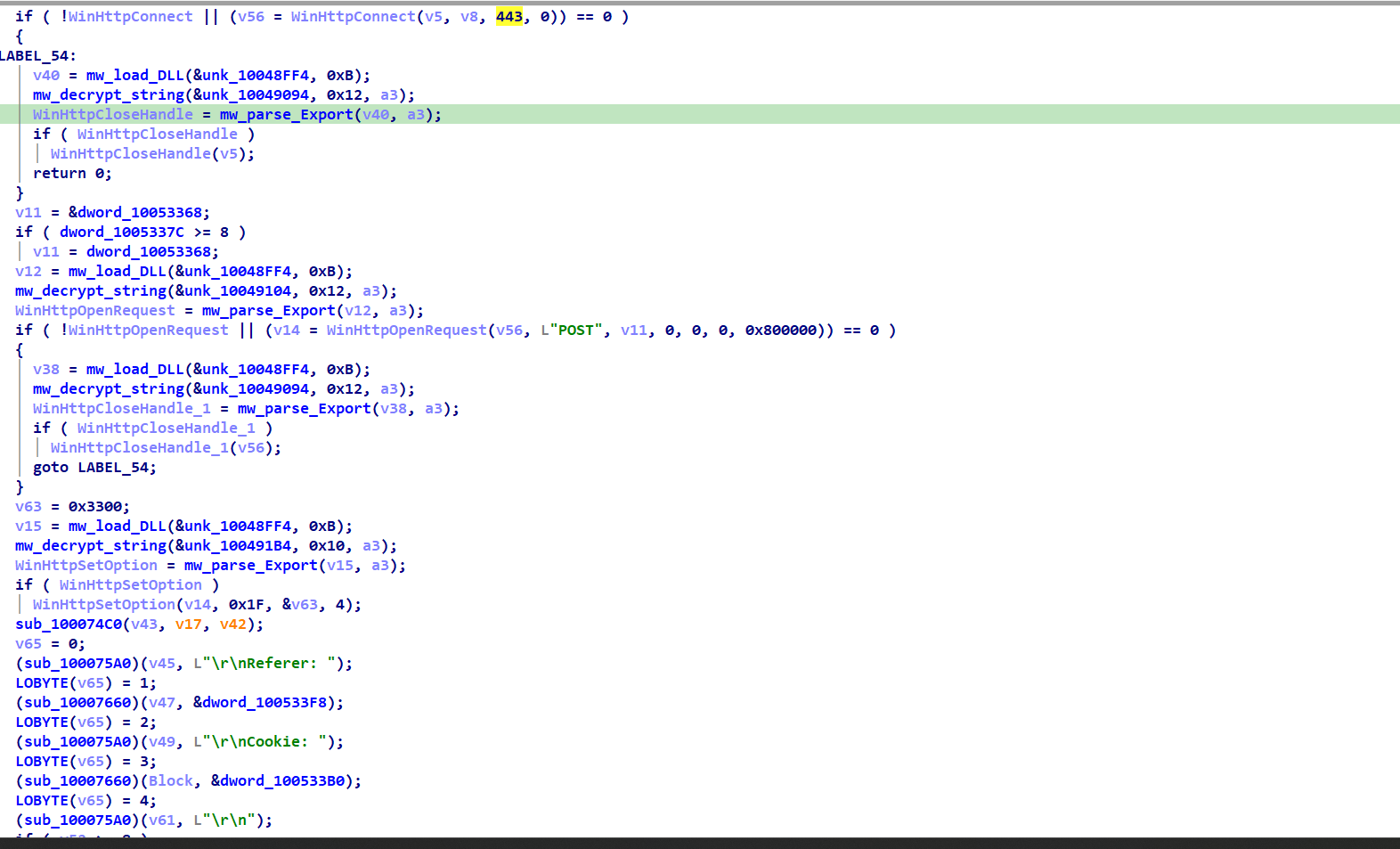

Figure(5) LotusLite Command and Control Function Inbound command packets are identified by a 4-byte magic header 0xB2EBCFDF, followed by a command ID, payload length, and payload data.

Offset	Size	Field
+0	4 bytes	Magic: 0xB2EBCFDF
+4	4 bytes	Command ID
+8	4 bytes	Payload Length
+12	n bytes	Payload Data

The beacon interval adapts based on operational state from 20ms during active shell I/O up to 2000ms on C2 failure making traffic pattern detection harder than fixed-interval beacons.

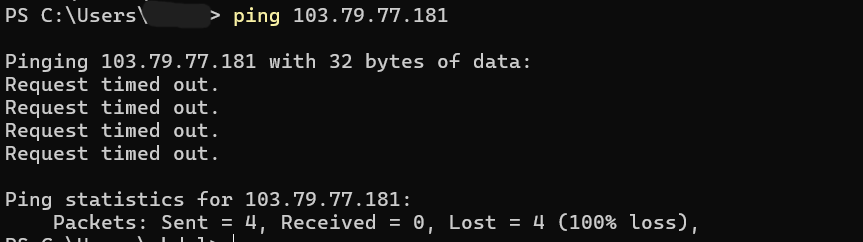

The C2 hostname itself is not hardcoded in the binary and is supplied at runtime by the loader, so I have emulated the checks of the paths installed by the loader loads our malicious DLL and got it and unfortunately its dead right now. Figure(6) LotusLite C2 Server No Response

C2 : 103[.]79[.]77[.]181

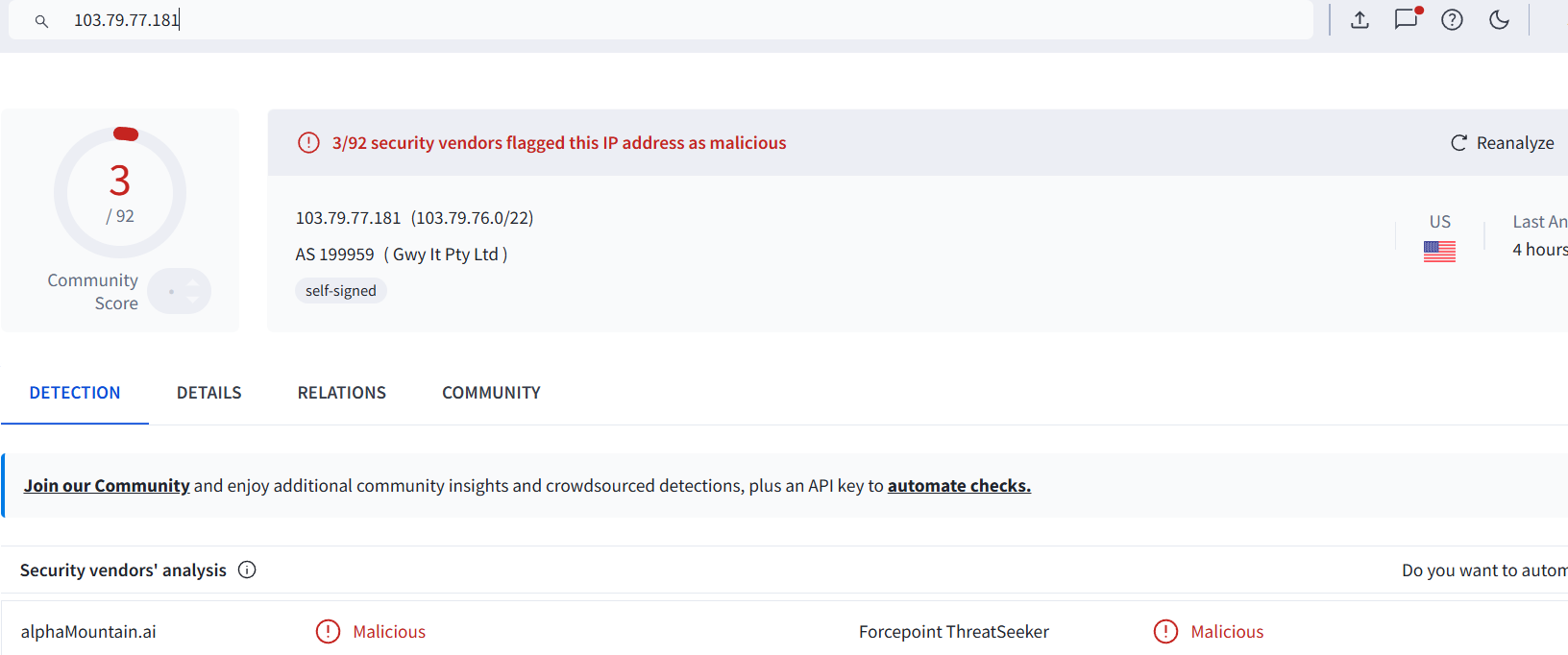

Figure(6) LotusLite C2 VT triage

---

LotusLite Backdoor

ID	Name	Description
0x01	CMD_EXEC_CMD	Executes a shell command via the pipe-backed cmd.exe process.Takes a string payload, writes it to the shell stdin pipe using WriteFile, and sets the re-poll delay to 60ms (0x3C).
0x03	CMD_LIST_DIR	Lists a directory. Takes a path string and calls sub_10003440, which performs FindFirstFileA / FindNextFileA on path\*, builds entries in the format name\|FILE\|size\n or name\|DIR\|size\n, then sends the result back via C2.
0x06	CMD_RESET_BEACON	Resets the beacon flag, forcing the next loop iteration to resend the initial host information beacon and re-register with the C2 server.
0x0A	CMD_SPAWN_SHELL	Creates anonymous stdin/stdout pipes and spawn a hidden cmd.exe process with redirected handles. Also starts a reader thread for shell output. One-shot behavior: ignored if the shell is already active.
0x0B	CMD_KILL_SHELL	Terminates the cmd.exe process via TerminateProcess, close all pipe handles, and clear the shell-active flag.
0x0D	CMD_CREATE_FILE	Takes a filename string and attempts up to five times to create the file using fopen(name, "wb") with 60ms retry delays, then immediately closes it with fclose, resulting in an empty file creation.
0x0E	CMD_WRITE_FILE	Accepts a payload formatted as filename\0data. Splits the buffer at the null byte, opens the target file in append mode ("ab") with up to five retries, and writes the supplied data blob using fwrite. Used for dropping or appending files to disk.
0x0F	CMD_PING / CHECKIN	Sends the string "OK" back to the C2 server as a keepalive/check-in response.

---

Persistence

HKCU\Software\Microsoft\Windows\CurrentVersion\Run “AwpOn” = “C:\ProgramData\WKwpsOffice2\WKwpsOffice.exe” –DMLA

---

Key Observation

Based on VT triage of C2 about the last HTTPS certificate , The certificate was issued 2026-03-12 and the Venezuela-themed campaign started January 2026 , meaning this cert was provisioned specifically for the campaign infrastructure. The India/South Korea campaign March 2026 timing aligns perfectly with this cert issuance date, suggesting this IP is part of the LOTUSLITE v1.1 wave targeting Indian banks and Korean diplomats, not the original Venezuela campaign. That date correlation alone narrows the infrastructure cluster significantly , any other MyLocalManager certs issued in the same March 2026 window are almost certainly the same operator spinning up parallel C2 nodes.

---

IOCs

Category	Summary
File System	Drops files into C:\ProgramData\WKwpsOffice2\, including WKwpsOffice.exe and a masqueraded DLL Microsoft.WindowsAppRuntime.Bootstrap.dll.
Registry Persistence	Creates the AwpOn Run key under HKCU\Software\Microsoft\Windows\CurrentVersion\Run to launch WKwpsOffice.exe --DMLA at logon.
Process Behavior	Spawns a hidden cmd.exe process using anonymous pipes for remote shell interaction and executes with the --DMLA argument.
Network Activity	Uses HTTP-based beaconing with a custom binary protocol identified by magic value 0xB2EBCFDF, with adaptive polling intervals between 20ms and 2000ms.
Host Discovery	Initial beacon includes basic victim identification data such as computer name and username.

---

MITRE ATT&CK Coverage

Tactic	Technique	ID	Evidence
Initial Access	Phishing / Malicious File	T1566.001	Fake PDF lure with corrupted file error
Execution	User Execution: Malicious File	T1204.002	Victim opens disguised PDF/EXE
Persistence	Registry Run Keys / Startup Folder	T1547.001	HKCU\...\Run → AwpOn key
Defense Evasion	Obfuscated Files or Information	T1027	XOR + reverse string encryption
Defense Evasion	Dynamic-link Library Injection	T1055	Delivered as DLL
Defense Evasion	Masquerading	T1036.005	Drops Microsoft.WindowsAppRuntime.Bootstrap.dll
Defense Evasion	Virtualization/Sandbox Evasion	T1497.001	Command-line argument inspection
Defense Evasion	Indirect Command Execution	T1202	API resolution hides imports
Discovery	System Information Discovery	T1082	Collects computer name and username
Discovery	File and Directory Discovery	T1083	CMD_LIST_DIR via FindFirstFile
Command & Control	Application Layer Protocol: Web Protocols	T1071.001	HTTP-based C2 beacon
Command & Control	Data Encoding / Custom Protocol	T1132	Binary packet format with magic 0xB2EBCFDF
Execution	Command and Scripting Interpreter: Windows Command Shell	T1059.003	Hidden cmd.exe shell with pipe I/O
Collection / Exfiltration	Data from Local System	T1005	Directory listing and shell-based file access
Command & Control	Ingress Tool Transfer	T1105	CMD_WRITE_FILE stages additional payloads

---

References

1. Acronis TRU. LOTUSLITE: Targeted Espionage Leveraging Geopolitical Themes.
   Acronis TRU Report

2. The Hacker News. LOTUSLITE Backdoor Targets U.S. Policy Organizations.
   The Hacker News Coverage

3. ThreadLinqs Intelligence. TL-2026-0430.
   ThreadLinqs Intel Report

4. SecureBlink. Mustang Panda Strikes India and South Korea with Updated LOTUSLITE Backdoor in Espionage Campaign.
   SecureBlink Analysis

5. FarghlyMal. LOTUSLITE Research Notes and Findings.
   FarghlyMal on X
